PRY-1050T Automatic Flatbed Hot Stamping Deep Embossing Various Paper Die Cutting Machine

Name: PRY1050T Automatic Flatbed Hot Stamping Deep Embossing Various Paper Die Cutting Machine
Brand: PRINTYOUNG
Price: 150000 USD

Wholesale PRY-1050T Automatic Flatbed Hot Stamping Deep Embossing Various Paper Die Cutting Machine from china suppliers

Brand Name : PRINTYOUNG

Model Number : PRY-1050T

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 150000 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 90 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Max. Sheet Size : 1050 × 750 mm

Min. Sheet Size : 400 × 350 mm

Max. Die-Cutting Size : 1040 × 720 mm

Max. Stamping Size : 1030 × 720 mm

Inner Chase Size : 1080 × 745 mm

Die Cutting Plate Size : 1050 × 730 mm

Liner Plate Thickness : 7 mm or 5+2 mm

Transverse Foil Width : 15 ~ 720 mm

Longitudinal Foil Width : 15 ~ 1030 mm

Max. Foil Diameter : Φ 250 mm

Foil Reel Core Inner Diameter : 25 mm (1”) or 76 mm (3”)

Transverse Feed Shafts : 2 pcs

Longitudinal Feeding Shafts : 3 pcs

Heating Zone : 12 pcs

Temperature Range : 50 ~ 199 ℃

Feeding Pile Height : 1550 mm

Delivery Pile Height : 1500 mm

Die-Cutting Accuracy : ≤ ± 0.1 mm

Stamping Accuracy : ≤ ± 0.125 mm

Max. Pressure : 300 T

Max. Machine Speed : 7500 S/H

Max. Stamping Speed : 6000 S/H

Min Gripper Margin : 7 mm

Air Supply : 0.6 ~ 0.7 Mpa , 0.36 m³/min

Power Requirement : 3 phases 380V 50Hz

Main Motor Power : 11 kw

Heating Power : 24 kw

Total Power : 60 kw

Total Machine Weight : 20 T

Overall Dimension 【L (+ Pre-Stacking)×W(+ Platform)×H】 : 5600(+1430) × 2100(+2000) × 2800 mm

Contact Now

PRY-1050T Automatic Flatbed Die Cutting Machine

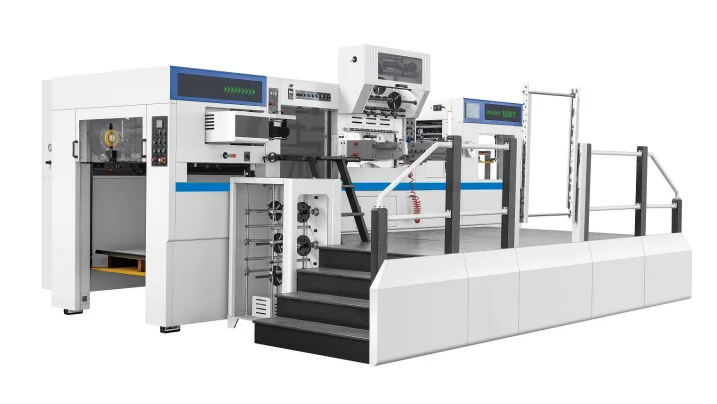

PRY-1050T Automatic Flatbed Hot Stamping Deep Embossing Various Paper Die Cutting Machine

Features

1.Platen press is driven by Taiwan TECO main motor with Panasonic inverter;the running of complete machine is controlled by PLC centralized controlling system which can automatically examine the working status and test unusual status as well as record the working condition.According to the Europe Safety Standard,we design reasonably to make the operability and safety perfect combination.
2.Advanced alarm system of starting up will remind operator to leave the unsafe area. Automatically detecting whole process,if malfunction,non-paper or paper stuck,the pneumatic clutch will separate and stop automatically which reduce the waste of paper, protect the staff and equipment.
3.Elaborate pre-stacked device and paper feeding & delivery non-stop devices reduce the time of stacking,improve the efficiency of machine and increase your income.
4.Selected European,Japanese,Taiwan electrical and pneumatic components improve the stability of the machine and reduce the frequency of inanimateness.
5.Mainframe and base adopt high strength spheroidal graphite iron QT500-7 which is accurately processed by numerical control center,guarantee the machine run stably in long time when bearing large pressure.The cores of the platen press machine such as crankshaft,worm gear,are all imported high-class alloy steel,which are processed by quenching and high temperature tempering with a long working life.
6.Lubrication system for core parts is equipped with display device for oil pressure and alarming device for insufficient pressure of oil and air.
7.Supply long-term and complete technical training as well as prompt free maintains for one year,guarantee that our clients can fully master the production technology of our equipment.Our machine is with Perfect design,accurate installation,high stability,high security,low noise.

Technical Parameters

PRY-1050T Automatic Die Cutting Machine
Max. Sheet Size	1050 × 750 mm
Min. Sheet Size	400 × 350 mm
Max. Die-Cutting Size	1040 × 720 mm
Max. Stamping Size	1030 × 720 mm
Inner Chase Size	1080 × 745 mm
Die Cutting Plate Size	1050 × 730 mm
Liner Plate Thickness	7 mm or 5+2 mm
Transverse Foil Width	15 ~ 720 mm
Longitudinal Foil Width	15 ~ 1030 mm
Max. Foil Diameter	Φ 250 mm
Foil Reel Core Inner Diameter	25 mm (1”) or 76 mm (3”)
Transverse Feed Shafts	2 pcs
Longitudinal Feeding Shafts	3 pcs
Heating Zone	12 pcs
Temperature Range	50 ~ 199 ℃
Feeding Pile Height	1550 mm
Delivery Pile Height	1500 mm
Stock Range	Paperboard : 0.1 ~ 2 mm
	Corrugated Paper : ＜ 4 mm
	Plastic Sheet : 0.2 ~ 1 mm
Die-Cutting Accuracy	≤ ± 0.1 mm
Stamping Accuracy	≤ ± 0.125 mm
Max. Pressure	300 T
Max. Machine Speed	7500 S/H
Max. Stamping Speed	6000 S/H
Min Gripper Margin	7 mm
Air Supply	0.6 ~ 0.7 Mpa , 0.36 m³/min
Power Requirement	3 phases 380V 50Hz
Main Motor Power	11 kw
Heating Power	24 kw
Total Power	60 kw
Total Machine Weight	20 T
Overall Dimension【L (+ Pre-Stacking)×W(+ Platform)×H】	5600(+1430) × 2100(+2000) × 2800 mm

Configuration

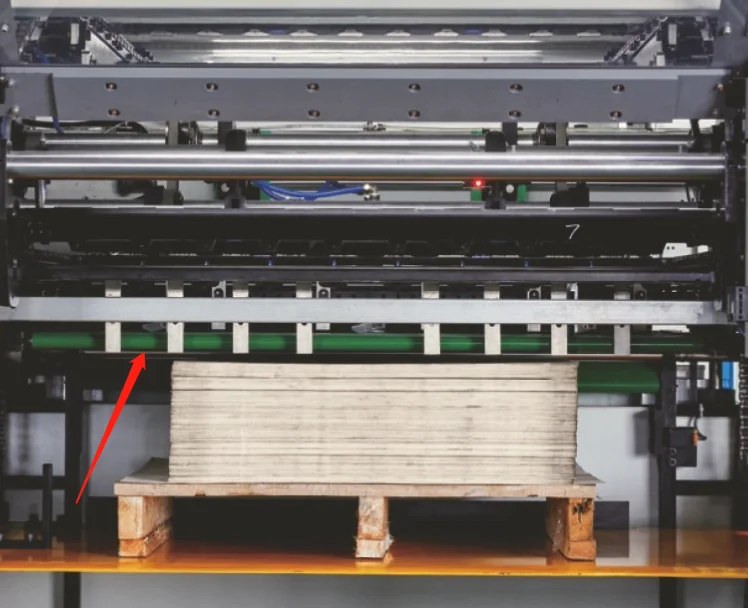

Paper Feeding Section:Feeder and Conveyor Table

1.The wall plate of feeder is made of cast iron,which is more stable while high speed running.

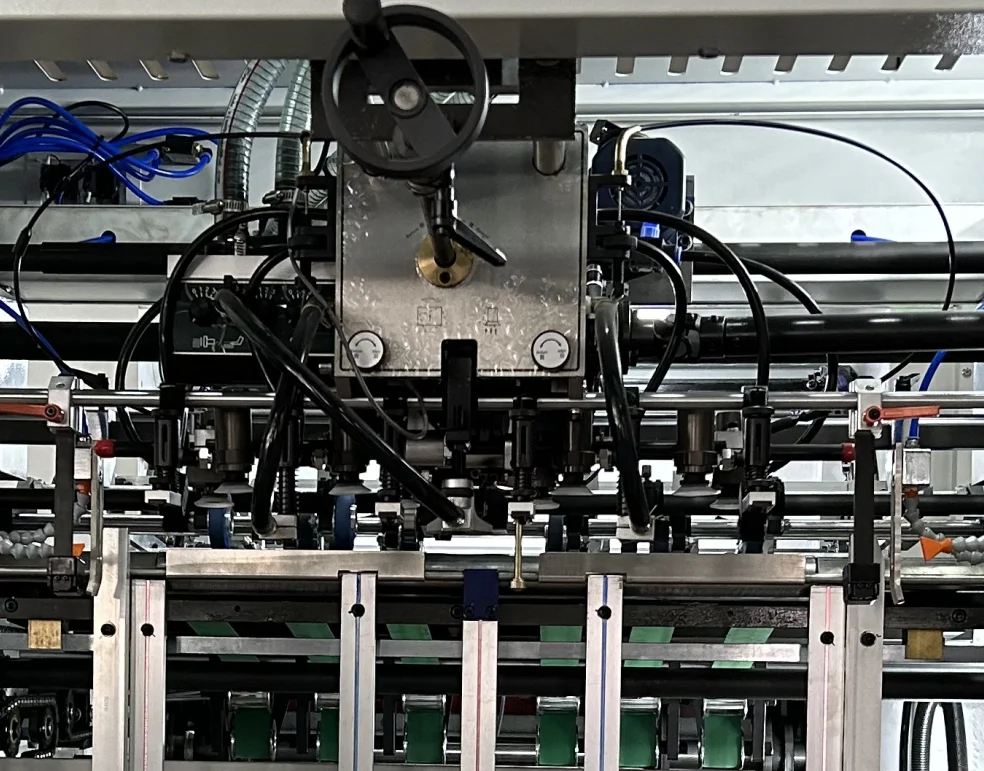

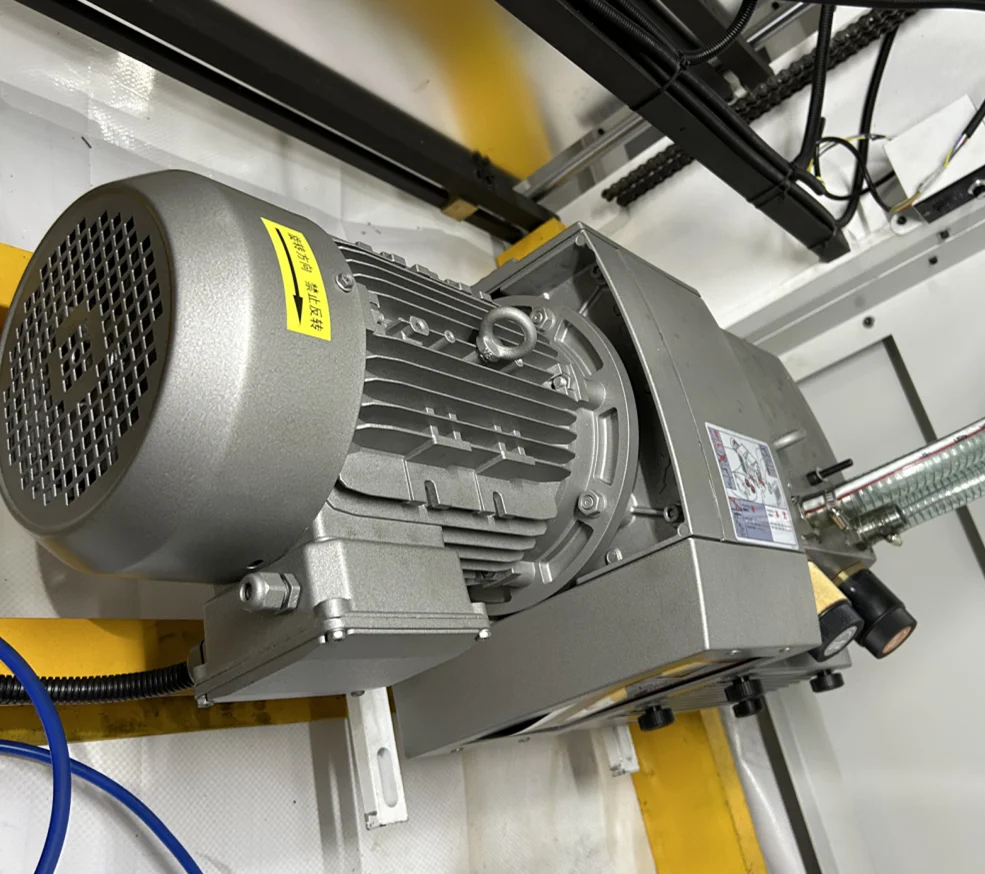

2.Precision feeder head (becker vacuum pump) with double side blower:suitable for both paperboard and corrugated board.It has 4 suction nozzles 4 feed nozzles,and the angle and height of nozzles can be adjusted to suit the different shapes of paper.

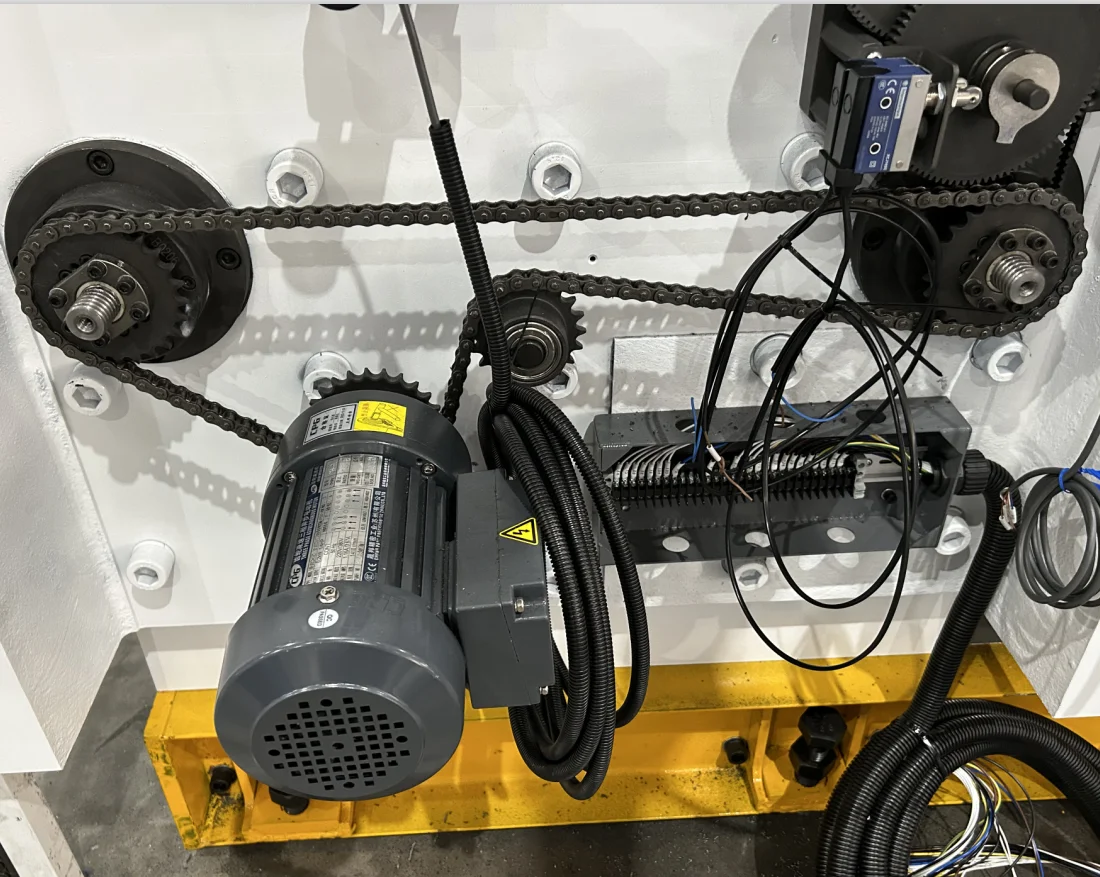

3.Feeder head (forward / backward) the pile alignment (left / right) can be adjusted by motor,you just need to press buttons to adjust.
4.Electra-mechanical double-sheet detector.

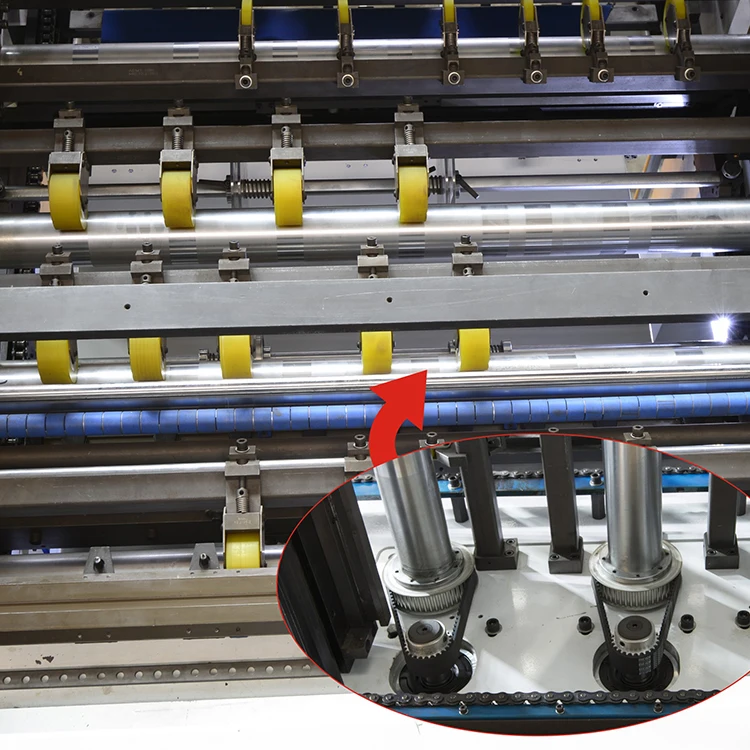

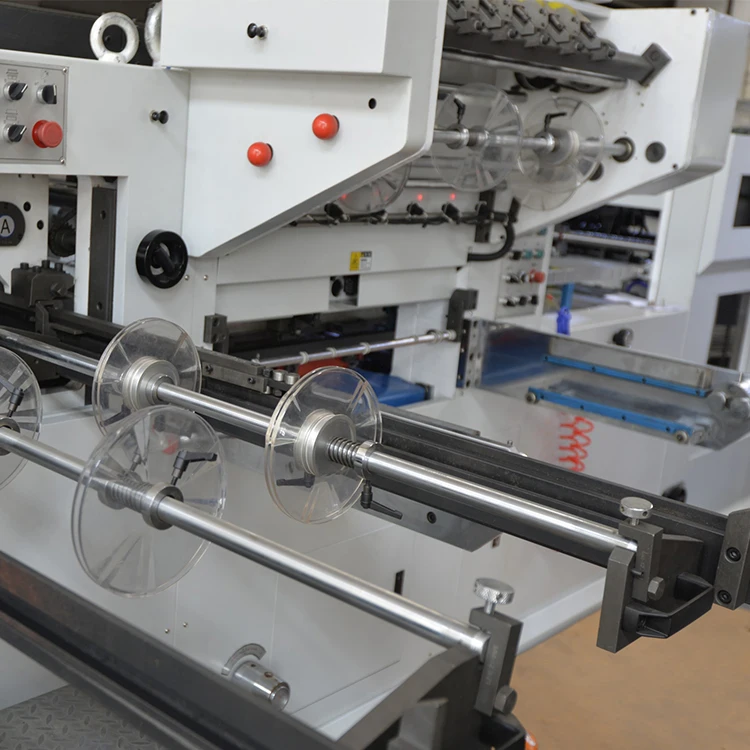

5.Slope type conveyor table with anti-wore PU press rollers and the brush wheels is much more suitable for feeding thin paper under high speed running condition.

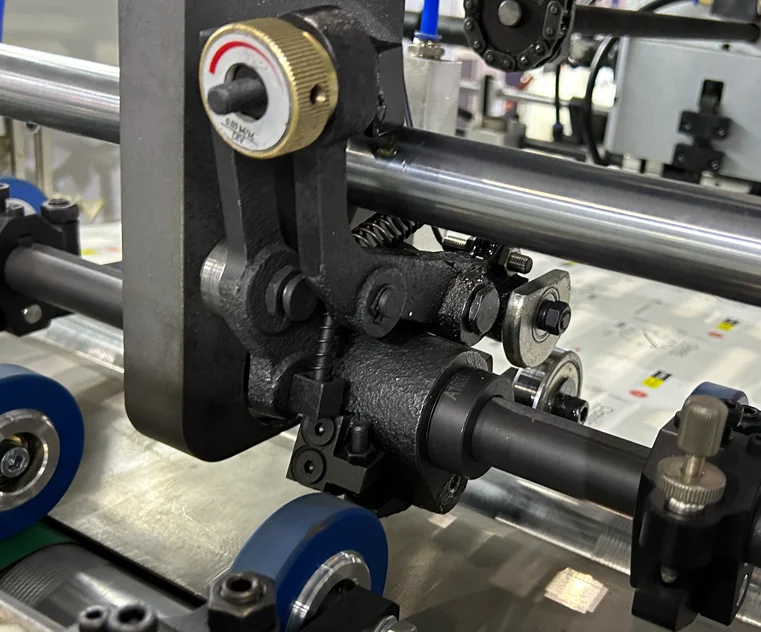

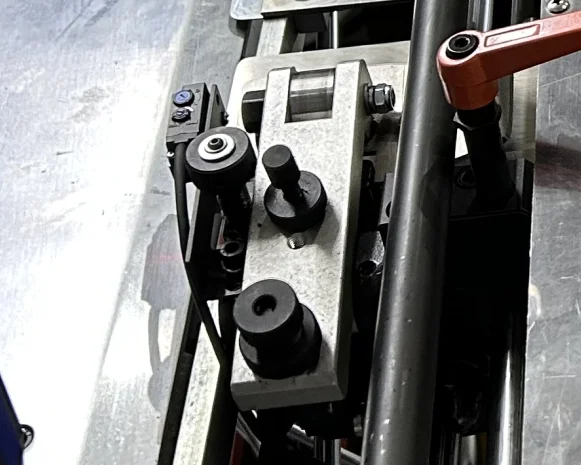

6.Double-usage side lay (pull and push) and front lay guarantee accuracy of the sheet position.

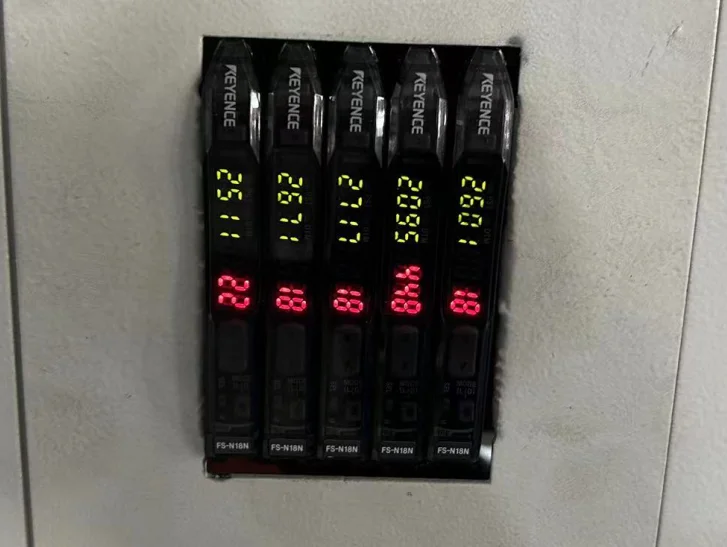

7.Skew paper and accumulated paper detection function and auto stop function:when the sensors detect the paper is skewed or accumulated before being delivered to platen press section,machine will stop.
8.Conveyor belt pneumatic buffer device:when high speed running,it helps the paper to be delivered smoothly by feeding belt.
9.Non-stop paper feeding structure and guide rail type pre-packed pallet improve the efficiency largely.

Platen Press Section

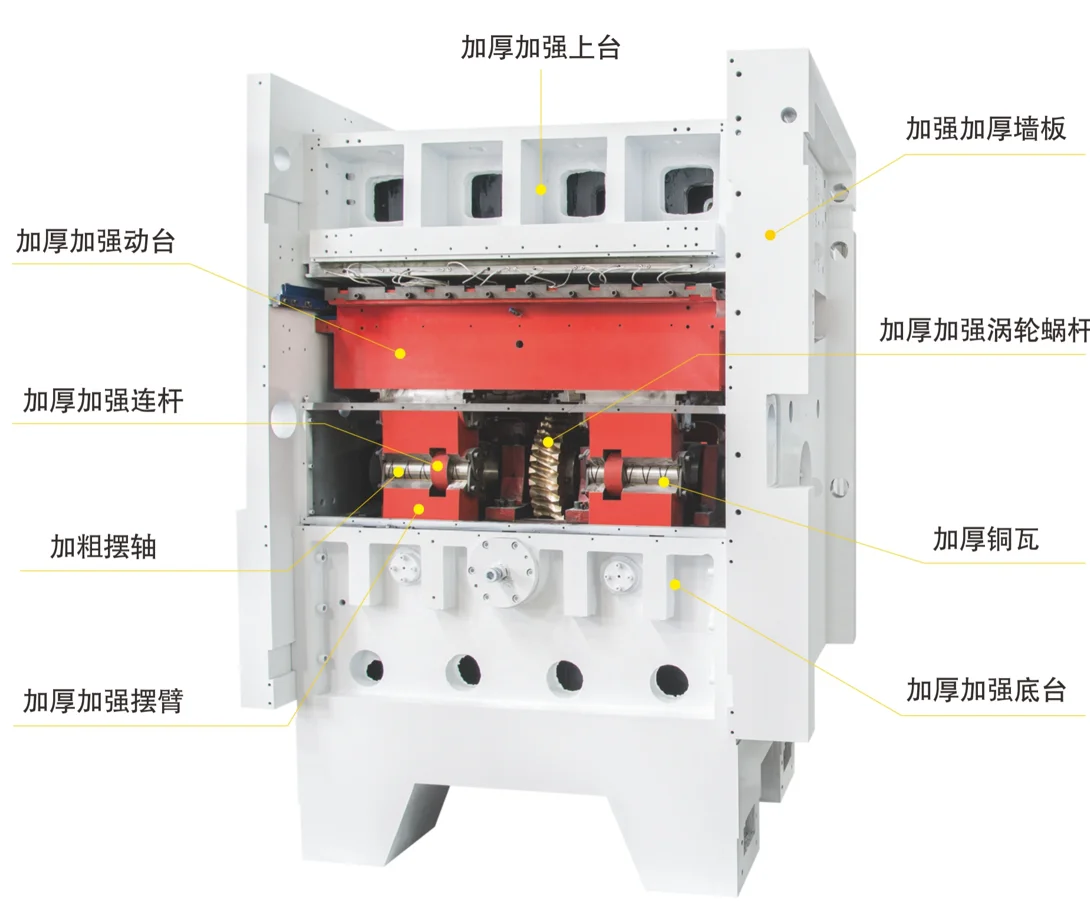

1.Main body adopts high-strength ductile iron QT500 with special casting process.The Ni-Cr-Mo Alloy crankshaft with special craft process treatment and super wear-resistant worm and gear.
2.High pressure automatic oil motor with filter and cooling fan recycles the oil to lubricate the main transmission parts (crankshaft,worm and gear).And the auto oil pump lubricates all of the necessary parts (gear,chains,etc.)

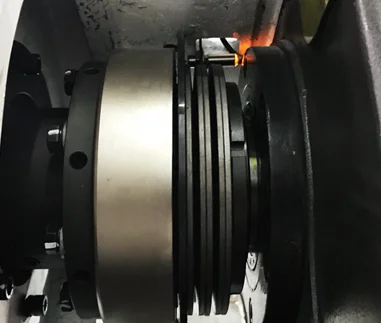

3.Big flywheel with the pneumatic clutch guarantees high precision when machine is high speed running.
4.Automatic pressure of die cutting adjustment system,operator just need to set value on touch screen to adjust pressure.

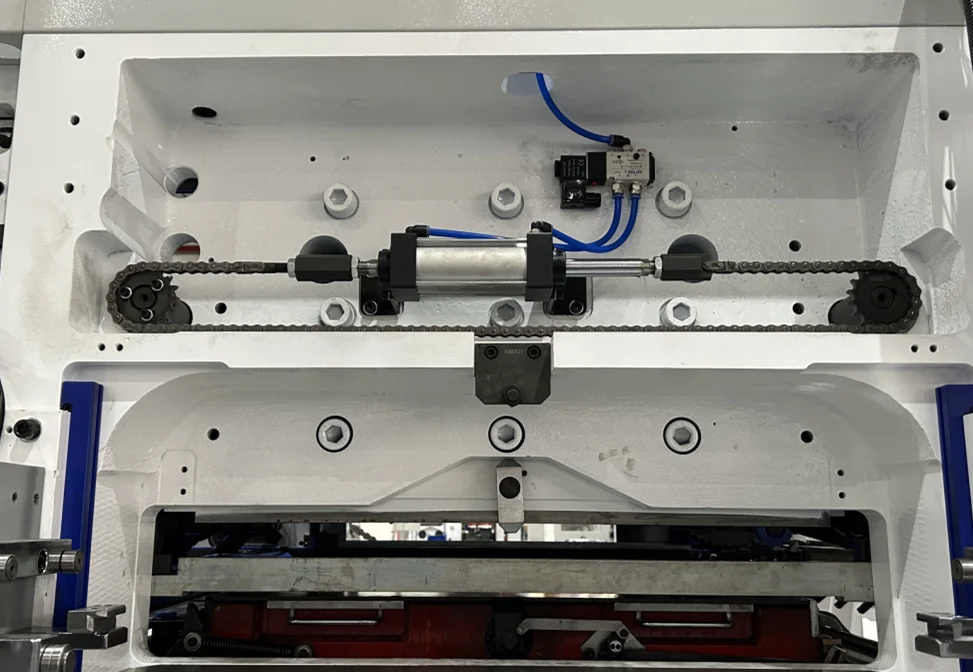

5.Human-friendly design for die and liner plate (Manganese Steel,HRC50-53) changing.Die frame can be overturned and locked pneumatically.

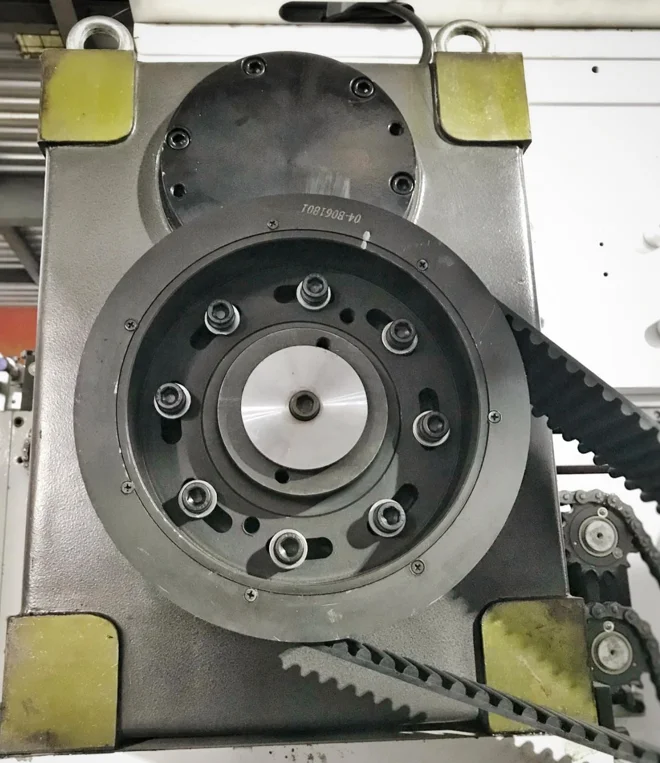

6.High-precision cam indexer with torque limiter and synchronous belt to control the gripper bars to deliver paper in accurate position stably when high speed running.

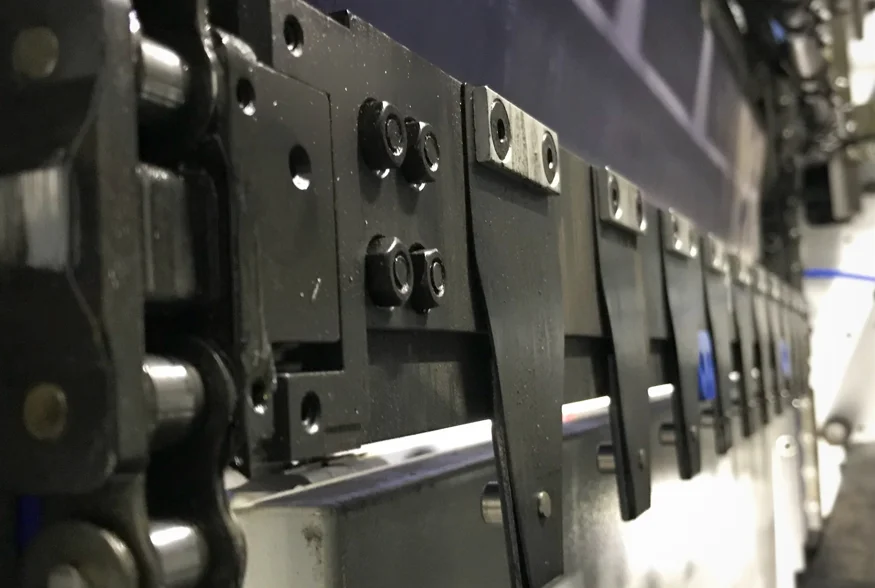

7.High-strength Ti-Al alloy grippers and wear-resisting chains for gripper bar.

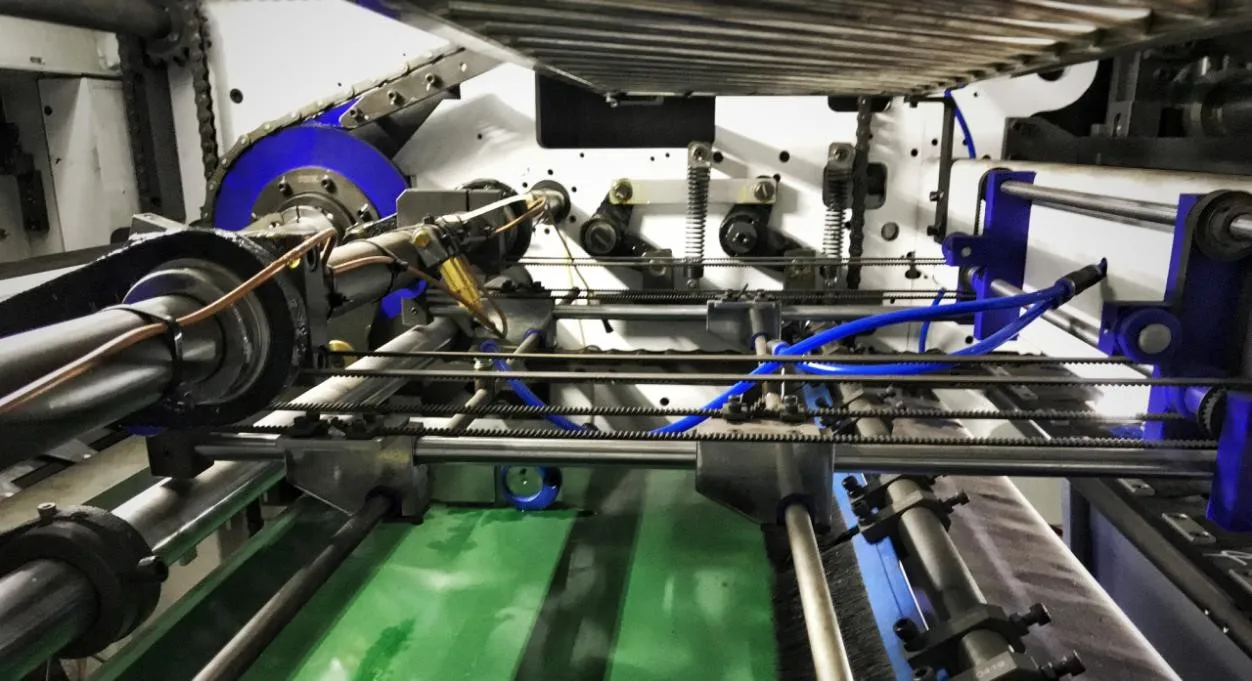

Foil Stamping Unit

1.Industrial tablet PC,touch screen input data,realize automatic program optimization, saving foils.
2.Adopt servo motor control system for foil stamping,feeding and collecting foil accurately.
3.Separate setting temperature of 12 heating area,thermostatic control.
4.Electronic pressure control system,during hot stamping,if there is no paper,there is no pressure.
5.Heat-resistant honeycomb plate is made by special material.

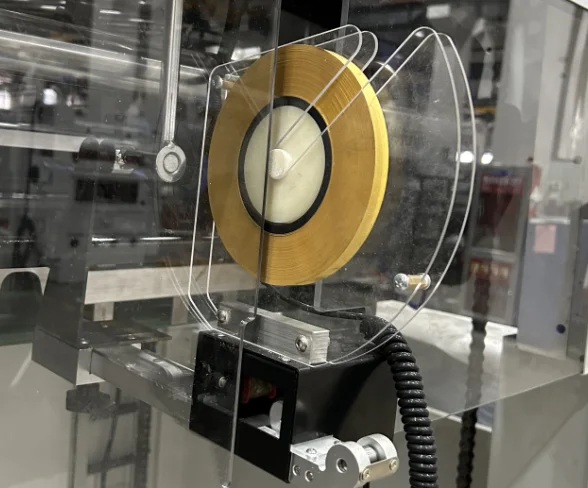

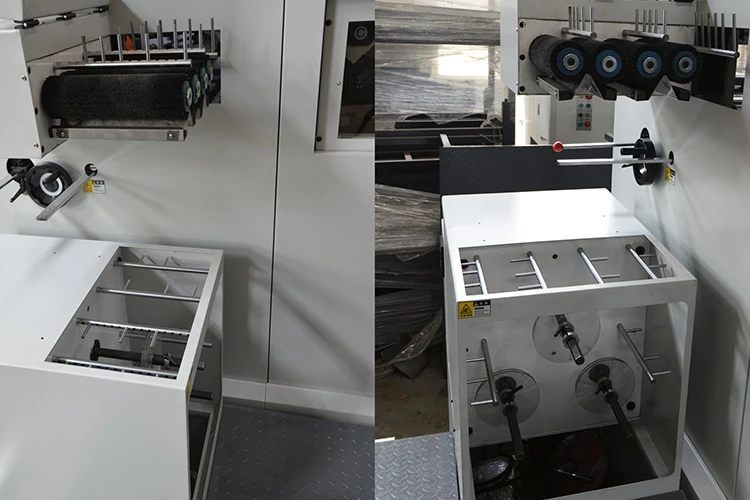

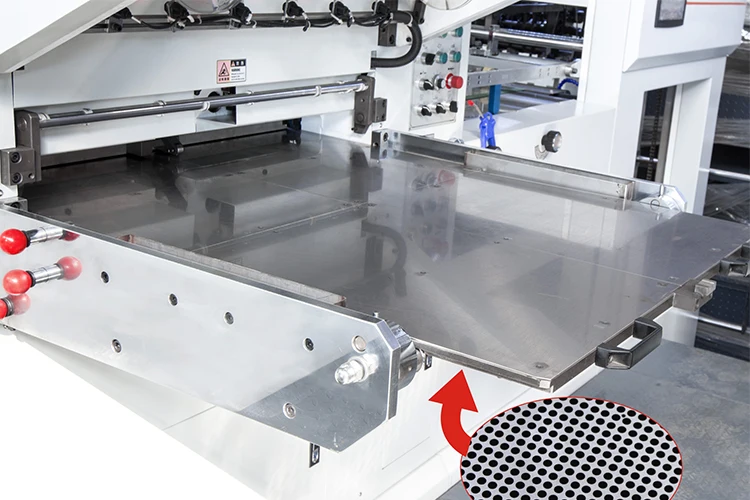

6.Drawer type foil feeding mechanism improves efficiency and ensures safety.

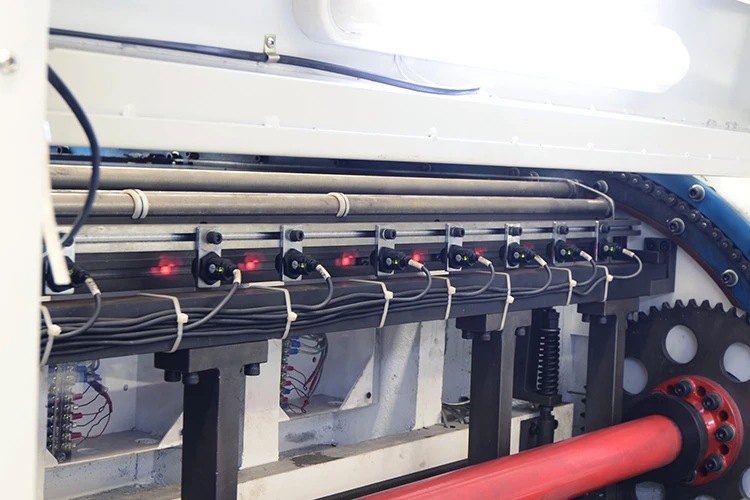

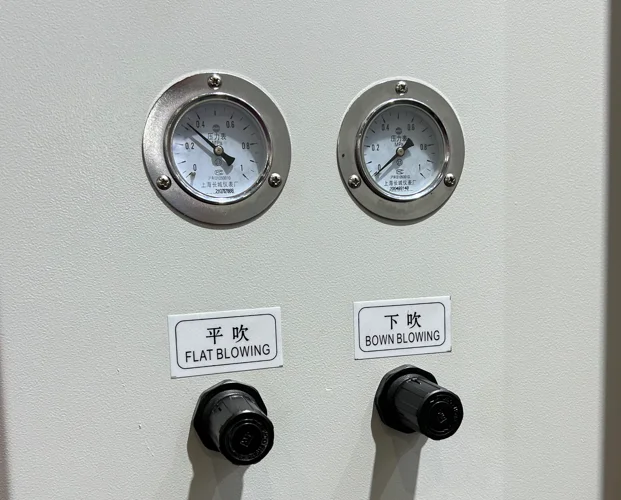

7.Transverse and Longitudinal foil separate blowing device and foil break detector system.
8.Separate waste recycle device and recycle box.
9.Honeycomb plate(optional).
10.extra plate-over stand(optional).

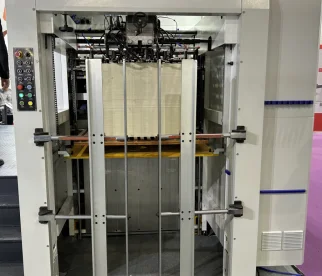

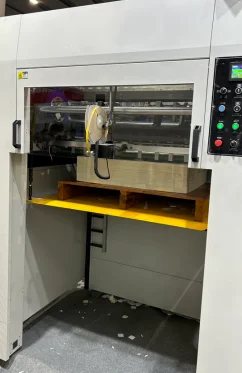

Paper Delivery Section

1.Automatic aligning device,adjustable air blower and hairbrush guarantee paper pile in good order,no matter the paper is thick or thin.
2.Overrun-prevention device:the sheet is moved upwards with the gripper bar;the detection sensor will be initiated and machine will stop.
3.Automatic non-stop paper delivery device is controlled by motor;you just need to press button to operate it.
4.Tag insert device (1 set) to record the sheets quantity.

Electrical Box and Control System

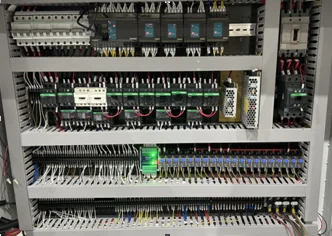

1.Interface controls are integrated,and numerous electrical switch controls are set in operation screen which is easy operation and easy understanding.
2.PLC centralized controlling system can automatically examine the working status and test unusual status as well as record the working condition.

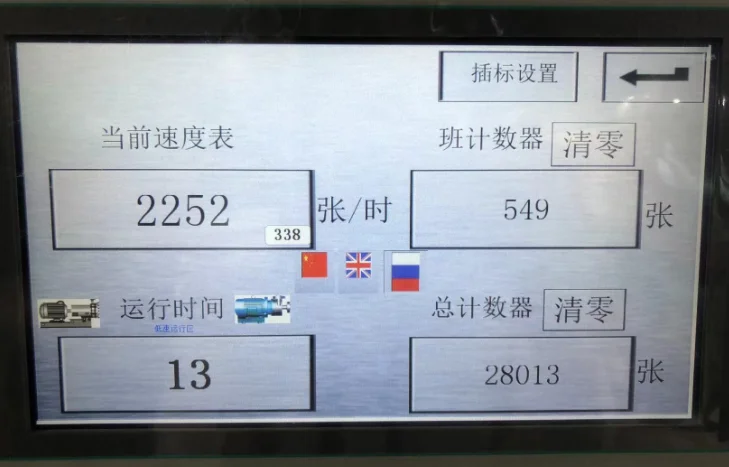

3.Problem diagnosis function on touch screen,if any problems occur,you can check touch screen to find it.
4.Chinese,English or other any language(optional) on touch screen.
5.Electrical components and electrical circuit are in accord with Europe American safety standard.

Applications

PRY-T automatic hot stamping and die cutting machine is used for hot stamping and die cutting various paper,paperboard,corrugated board,plastic sheet(like PVC,PP),with function of foil hot stamping,die cutting & creasing and embossing.It adopts server motor to control the foil stamping,feeding and collecting.Temperature control system has 8 heating area, temperature setting separately,and thermostatic control.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

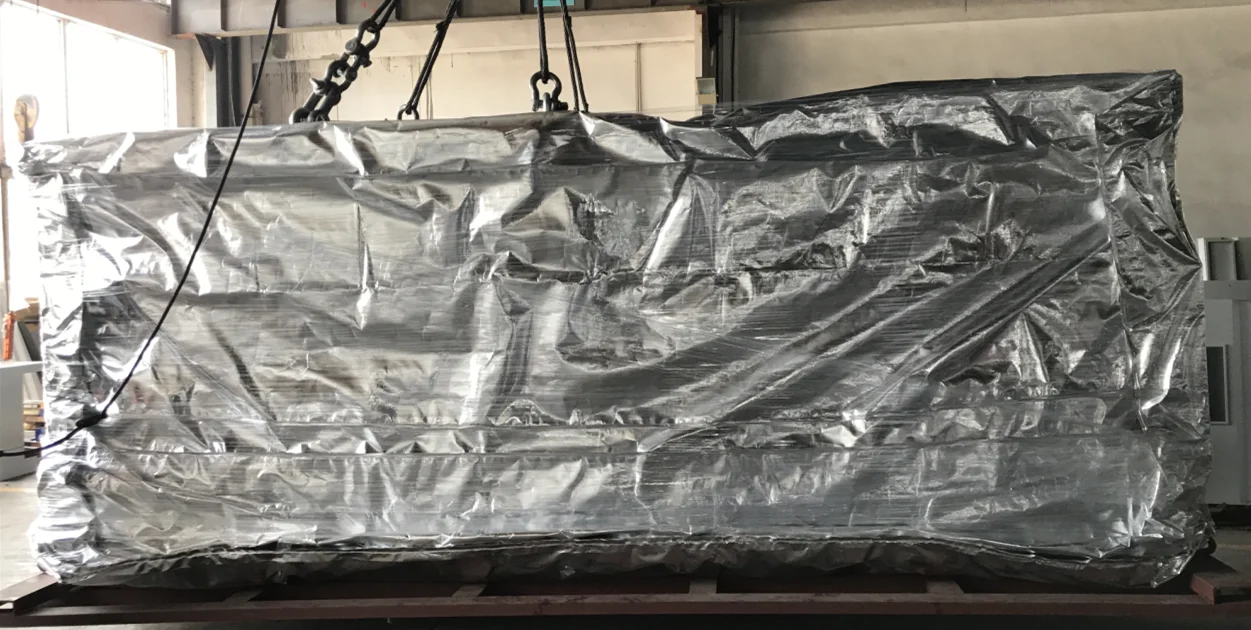

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
